1. Delving into the Factors Behind PCB Costs

Ever wondered why that little green (or sometimes other colors!) board inside your gadgets carries such a significant price tag? Were talking about Printed Circuit Boards, or PCBs. These unsung heroes are the backbone of modern electronics, connecting all the components in your devices. But why is a PCB so expensive? Let's unravel this a little. It's not just about the materials; it's a symphony of design, manufacturing, and quality control that all contribute to the final cost.

Think of it like this: building a simple birdhouse versus constructing a luxury condo. Both provide shelter, but the materials, labor, and complexity involved are worlds apart. PCBs are similar — a simple single-layer board is far cheaper than a multi-layer one with intricate routing and specialized finishes. And just like real estate, location matters. PCBs manufactured in regions with higher labor costs or stricter environmental regulations can also carry a premium.

The price of a PCB isn't just pulled out of thin air. Its a reflection of the intricate process and careful consideration that goes into its creation. From the initial design phase to the final testing, each step adds value (and cost) to the final product. So next time you see a PCB, remember it's more than just a board — it's a testament to engineering prowess and manufacturing precision.

We're going to dive deep, dissecting each contributing factor so you can fully grasp the answer to "Why is PCB so expensive?" By the end, you'll be practically fluent in PCB economics. No PhD required, promise!

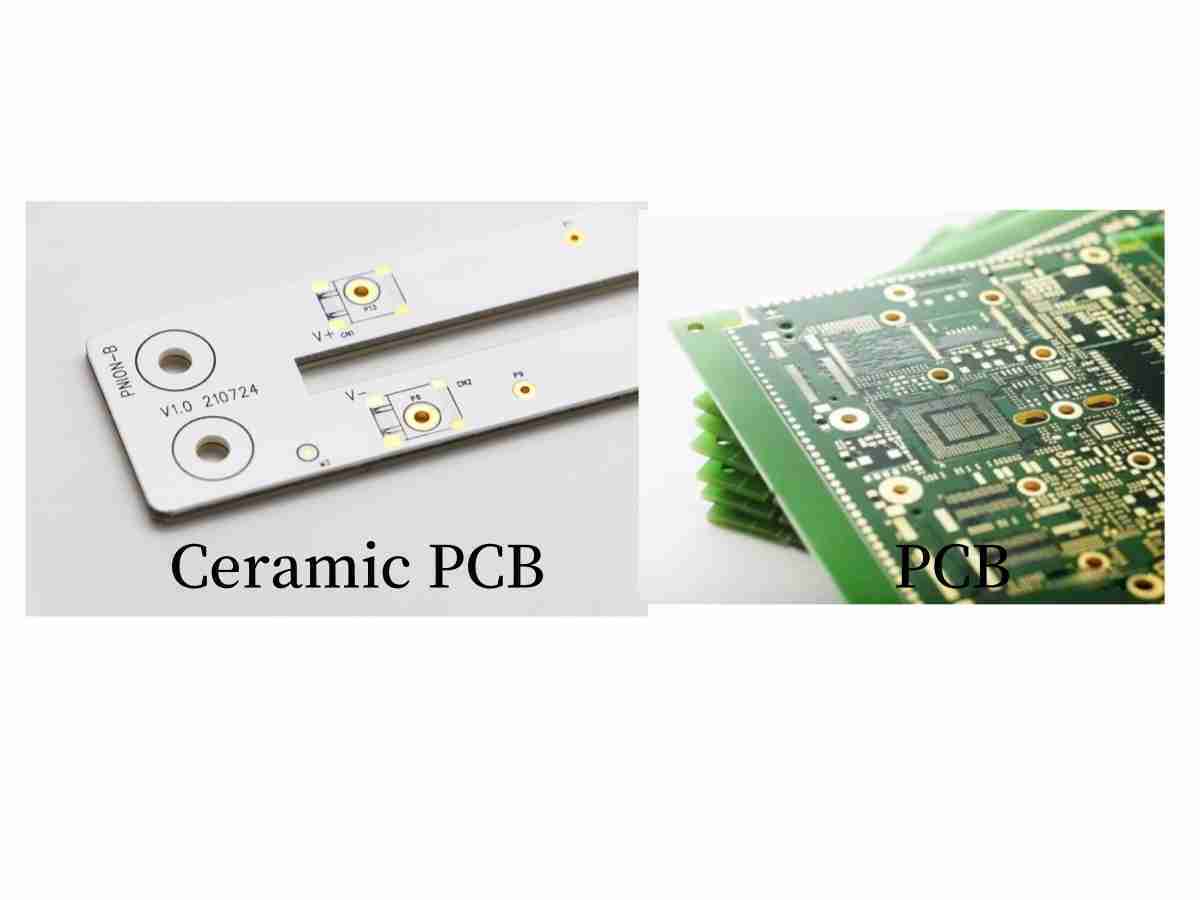

Why Are Ceramic PCB More Expensive Than Ordinary PCB?

The Intricacies of PCB Design and Engineering

2. Exploring the Role of Design in PCB Pricing

Before a PCB can even be manufactured, it needs a detailed design. This isn't just sketching some lines on a napkin; it involves sophisticated software, skilled engineers, and a deep understanding of electronics. The complexity of the design directly impacts the cost. A simple single-layer board takes less time and expertise to design than a multi-layer board with dense component placement and high-speed signal routing.

The design process includes schematic capture, PCB layout, and signal integrity analysis. Engineers must consider factors like component placement, trace width, impedance control, and thermal management. All of these considerations affect both the performance and reliability of the final product. Plus, if you need a super-specialized design that pushes the boundaries of current manufacturing capabilities? Get ready to pay a premium.

Errors in the design phase can be incredibly costly, leading to delays, rework, and even scrapped boards. Therefore, thorough design verification and simulation are essential. But guess what? Those extra verification steps translate to higher engineering costs that ultimately trickle down into the final price of the PCB. Its an investment in quality, preventing expensive mistakes later.

Moreover, the software used for PCB design often comes with hefty licensing fees. These costs are absorbed by the PCB manufacturer and factored into their pricing. In short, the more complex and demanding the design, the more expensive the PCB will be.

Flexible PCB Cost Why It's More Expensive And How To Reduce It JHYPCB

Materials Matter

3. Breaking Down the Material Costs in PCB Manufacturing

What PCBs are made of significantly affects their final cost. The base material, typically FR-4 (a fiberglass epoxy laminate), isn't inherently expensive. However, specialized materials used for high-performance applications can significantly increase the price. Think about high-frequency laminates for RF applications or ceramic substrates for high-temperature environments.

Copper is another crucial material. The thickness and amount of copper used in the PCB directly influence its cost. Thicker copper layers can handle higher currents, but they also require more material. Similarly, specialized surface finishes like gold or silver, used for improved conductivity and corrosion resistance, add to the material costs.

Beyond the primary materials, there are numerous other consumables involved in PCB manufacturing, such as etching chemicals, solder masks, and silkscreen inks. The quality and type of these materials can also impact the cost. For example, using a high-quality solder mask that provides superior protection against corrosion and environmental factors will generally increase the PCB price compared to cheaper alternatives.

Furthermore, fluctuations in the global market prices of these raw materials can directly affect PCB costs. If copper prices suddenly spike, PCB manufacturers will inevitably pass those costs on to their customers. Staying updated on material market trends is crucial for both manufacturers and consumers to anticipate potential price changes.

Why Ceramic PCB Is So Expensive?

Manufacturing Complexity

4. Understanding the Manufacturing Processes that Drive PCB Costs

Manufacturing PCBs is a multi-step process that requires specialized equipment, skilled labor, and strict quality control. Each step adds to the overall cost. A simple single-sided board is relatively inexpensive to manufacture. However, as the complexity increases — multi-layer boards, blind and buried vias, fine-line traces — the manufacturing cost escalates significantly.

The etching process, which removes unwanted copper from the board, requires precision and careful monitoring. Over-etching or under-etching can lead to defects and scrapped boards. Similarly, the drilling process, which creates holes for component placement, must be accurate to avoid misalignments and connection issues. Think of drilling tiny, perfectly placed holes through multiple layers of material — it requires specialized drills and expertise.

The assembly process, where components are placed and soldered onto the board, can be automated or manual, depending on the volume and complexity of the PCB. Automated assembly is faster and more efficient for large production runs, but it requires significant upfront investment in equipment. Manual assembly is often used for small batches or intricate designs, but it's more labor-intensive and prone to errors.

Finally, rigorous testing and inspection are essential to ensure the quality and reliability of the PCBs. Automated Optical Inspection (AOI) and functional testing can identify defects early in the process, preventing costly failures in the field. All of these steps, from etching to testing, contribute to the overall manufacturing cost and ultimately influence the final price of the PCB.

Why PCB Is In Green Color? It All About MONEY YouTube

The Impact of Quantity and Lead Time on PCB Price

5. How Order Size and Speed Affect PCB Costs

Just like buying anything in bulk, the quantity of PCBs you order significantly affects the price per unit. Larger orders allow manufacturers to spread their setup costs over more boards, reducing the per-unit price. Smaller orders, on the other hand, require more setup time and often incur higher per-unit costs. Think of it as the "economies of scale" principle at work.

Lead time, or the time it takes to manufacture and deliver the PCBs, also plays a crucial role. Rush orders that require expedited manufacturing and shipping will inevitably cost more. Manufacturers often have to prioritize these orders, disrupting their regular production schedules and potentially incurring overtime costs. If you need your PCBs "yesterday," be prepared to pay a premium.

The relationship between quantity, lead time, and price is a delicate balancing act. Planning ahead and placing orders well in advance can help you secure better pricing and avoid rush charges. Consider forecasting your demand accurately to optimize your order size and minimize your overall PCB costs. Even better if you have a good relationship with your manufacturer, this allows for better planning.

Furthermore, the location of the manufacturer can affect lead times and shipping costs. Sourcing PCBs from overseas manufacturers can sometimes be cheaper, but it also comes with longer lead times and potential delays due to shipping and customs clearance. Weighing the trade-offs between price, lead time, and location is essential for making informed purchasing decisions.

Why Is The PCB Assembly Process So Critical？ IBE Electronics

FAQ

6. Answering Your Burning Questions About PCB Costs

Got more questions? We thought you might. Here are some common queries related to PCB pricing:

Q: What are the main factors influencing PCB cost?

A: The primary drivers are design complexity, raw materials, manufacturing processes, quantity, lead time, and region.

Q: How can I reduce the cost of my PCBs?

A: Simplify your design, optimize your order quantity, plan ahead to avoid rush charges, and consider sourcing from manufacturers with competitive pricing.

Q: Is it always cheaper to source PCBs from overseas?

A: Not necessarily. While overseas manufacturers can offer lower prices, consider the potential for longer lead times, shipping costs, and communication barriers. Sometimes a local supplier is worth the extra cost for improved responsiveness and faster turnaround.

Q: What does the "noun" part of speech means on the keyword term "Why is PCB so expensive"?

A: The main point of this article revolves around the noun "PCB" which is Printed Circuit Board. The article focus on explaining the various reasons for PCB being so expensive. The noun represents the physical object and its associated costs that we are trying to understand.
